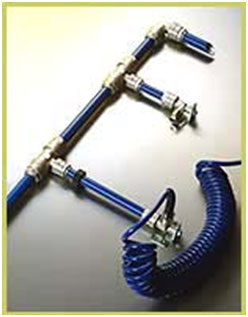

Infinity Energy Efficient Aluminium Pipework


The Infinity compressed air pipework range, which is supplied in sizes from 20mm to 63mm, has many proven advantages over competing systems.  It's fast connecting and easy to install technology ensures installation labour costs are significantly reduced.  Unlike its competition, Infinity has an all round durability, robust finish and corrosion resistant tubing which ensures the system will be long-lasting and against other products on the market, extremely cost effective.

InfinityThe Infinity range is a true push fit system.  With fully captivated seals and grab rings up to 63mm, it's smooth bore once assembled ensures large air flows at pressures up to 15bar.

Within the vast range are the unique condensate trap tee's which are designed to ensure efficient transfer of air whilst retaining any unwanted water with the system which can then be disposed of with the use of the specially designed drain valves.

Compressed air used in industrial pneumatic equipment contains 100 million polluting particles per 1m3.  These particles mixed with water and oil vapours  generated through the compression process can cause early wear and tear on the equipment which can result in expensive repair costs and production interruptions.  It is essential the air is treated and so to complement Infinity, a full range of HPC air treatment and outlet solutions are also available.


Component Part and Materials

  • Nut made in Nickel-Plated Brass
  • Seal made in NBR
  • Clamping Washer made in Inox AISI 304
  • O-Ring seals made in NBR
  • Safety Ring made in Technopolymeric
  • Body made in Nickel-Plated Brass


Minimum Pressure, -0.99 bar (0.099 Mpa)
Maximum Pressure, 15 bar (1.5 Mpa)


Minimum Temperature, -20°C
Maximum Temperature, +80°C

Compatible Fluids

  • Compressed air
  • Water
  • Vacuum

Fire Resistance

The system does not stroke or propagate any fires


Male threads taper in conformity with ISO
Female threads in conformity with ISO 228
